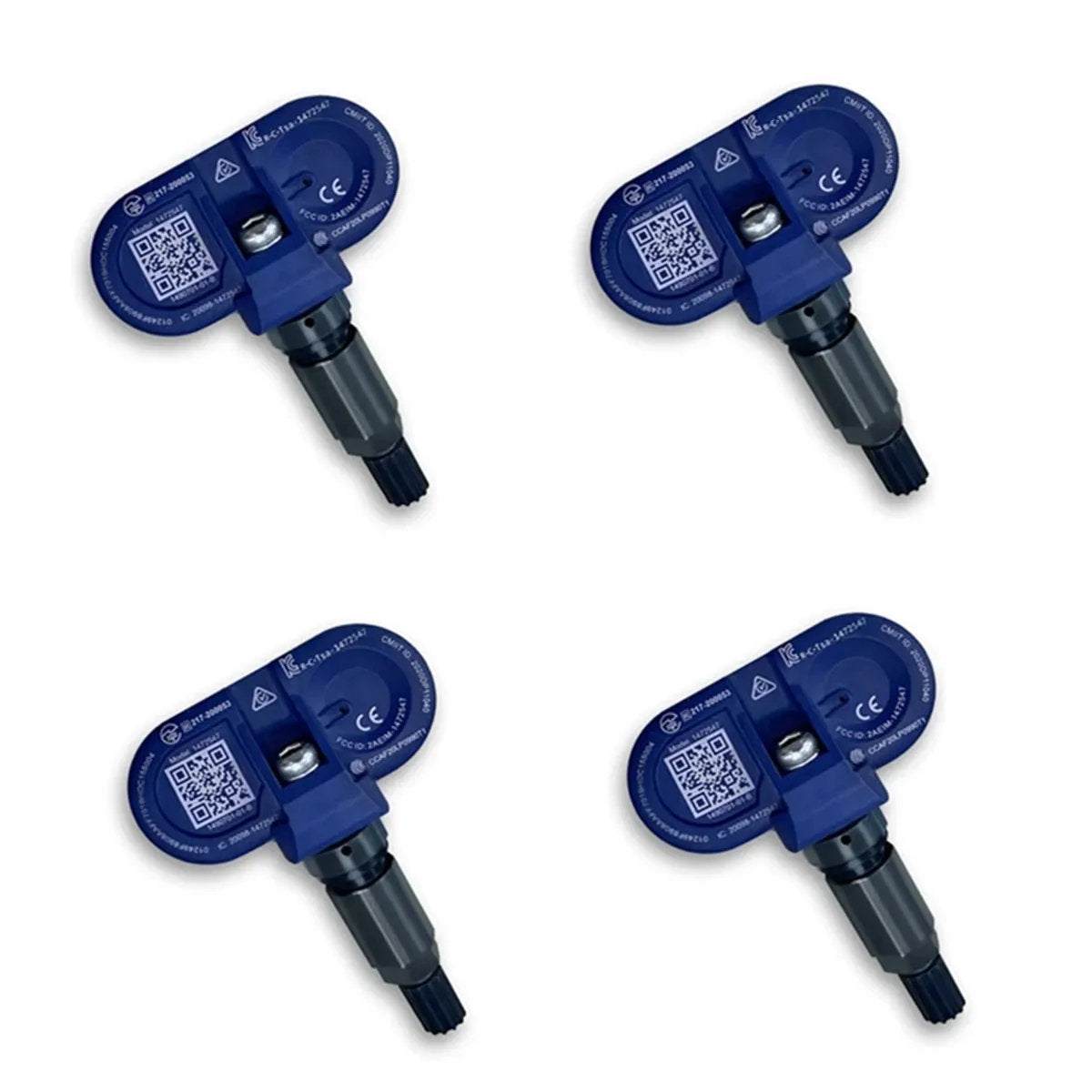

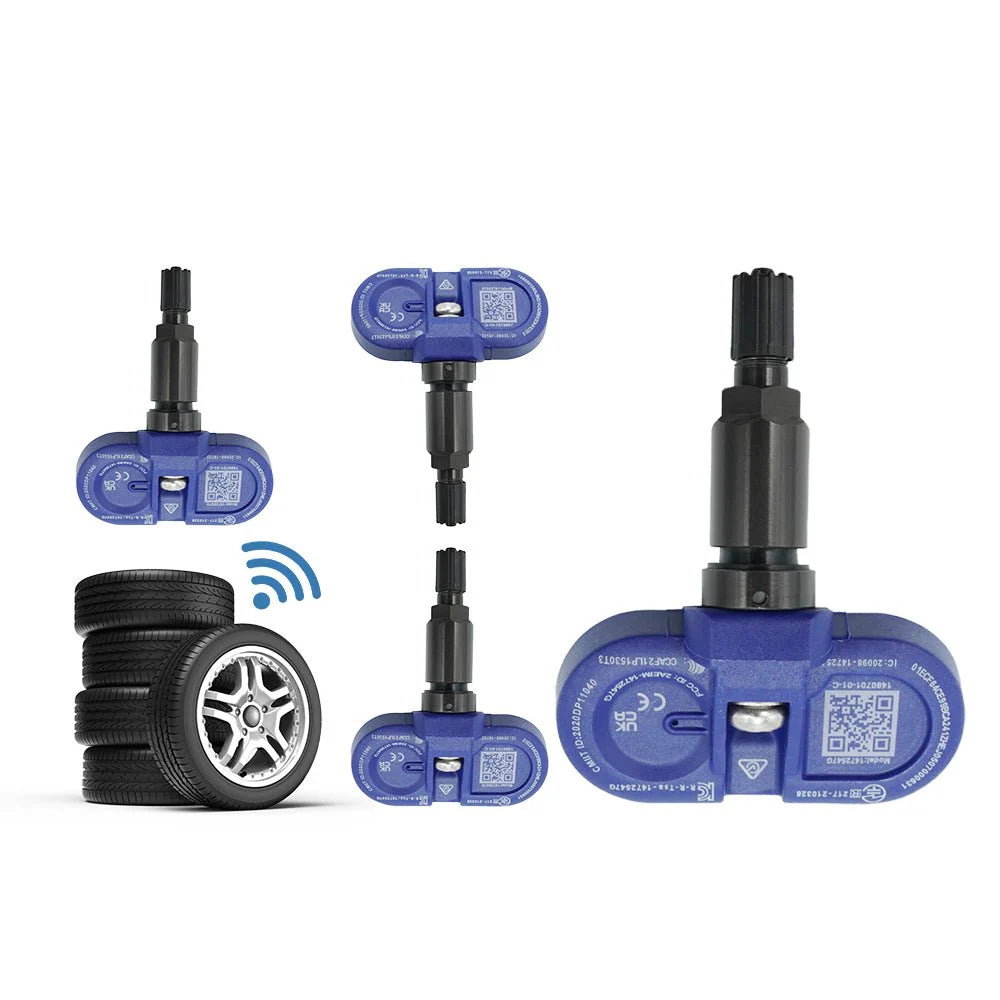

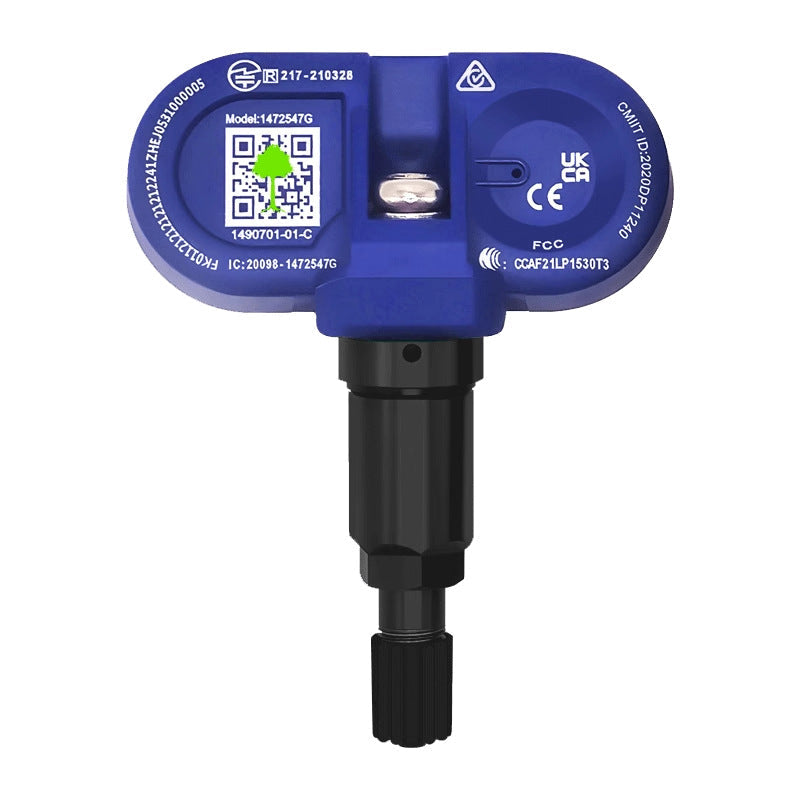

Tire Pressure Monitoring System (TPMS) for Tesla Model S/3/X/Y – Bluetooth (Set of 4 Sensors)

BLE Bluetooth TPMS Sensor for Tesla

Designed specifically for seamless integration with your Tesla, this pre-programmed BLE Bluetooth Tire Pressure Monitoring Sensor (TPMS) delivers OEM-level reliability with simple plug-and-play installation. It provides real-time, highly accurate tire pressure and temperature updates directly to your vehicle's system and smartphone app via a stable 2.4G wireless Bluetooth signal. Built to withstand extreme weather conditions, the sensor is equipped with a 320mAh / 3V battery that ensures a lifespan of 5 years or more, keeping you safe and informed without the hassle of frequent replacements.

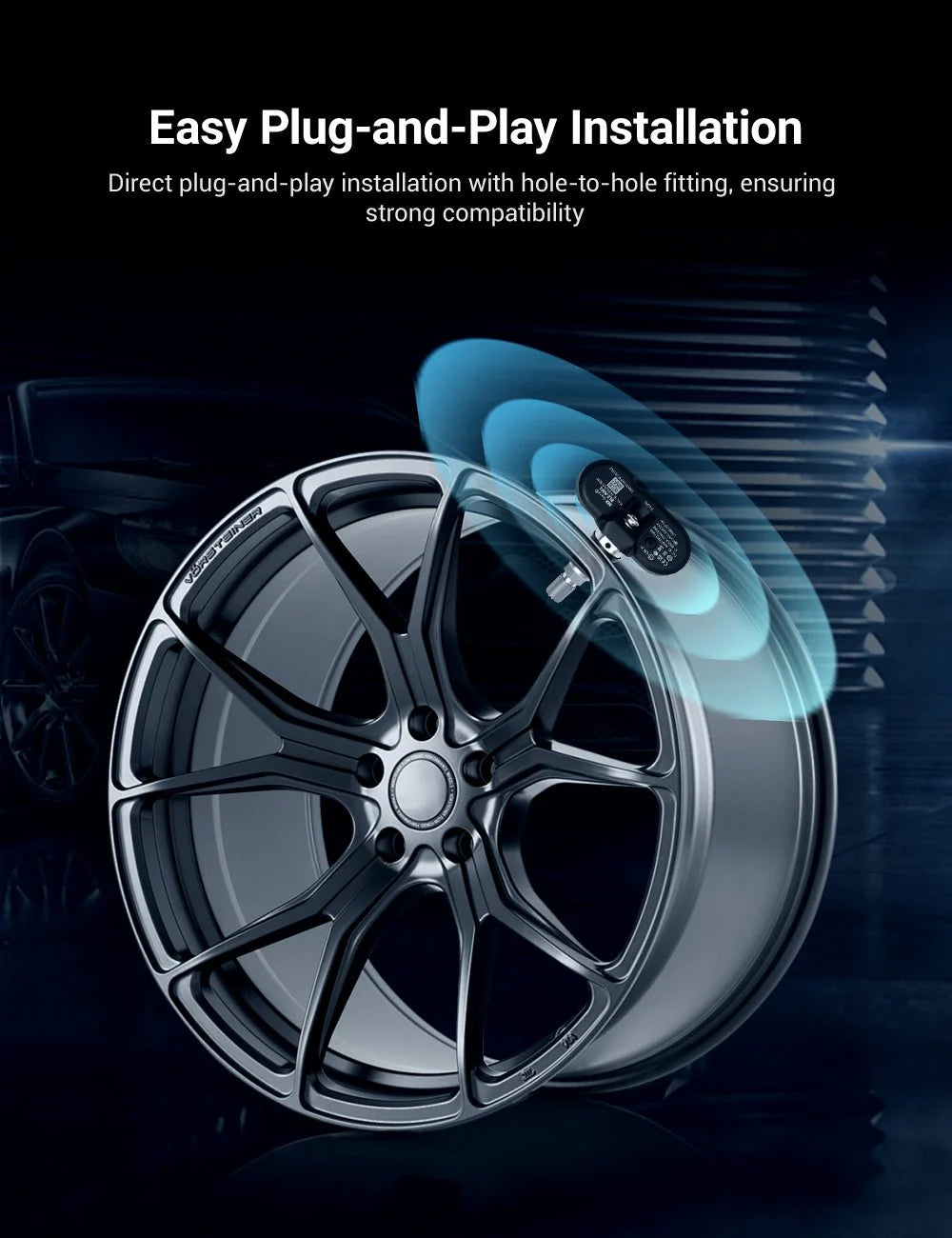

Installation Guide

1. Loosen the Tire: Safely lift the car if needed and loosen the tire nuts without removing them completely.
2. Remove the Valve Cap: Unscrew the cap from the tire valve.
3. Install the Sensor: Securely screw the TPMS sensor onto the tire valve, avoiding over-tightening.
4. Inflate the Tire: Pump the tire to Tesla's recommended pressure to ensure accurate readings.
5. Replace the Valve Cap: Screw the cap back over the sensor for protection.
6. Test the System: Turn on your Tesla and verify that the sensor is communicating properly with the tire pressure monitoring system.

Technical Specifications

• Operating Temperature: -40℃ ~ +105℃
• Storage Temperature: -40℃ ~ +120℃
• Pressure Monitoring Range: 0 ～ 116psi (0 ～ 8.0bar)
• Pressure Accuracy: ±1.5PSI (±0.1bar)
• Temperature Accuracy: ±3°C

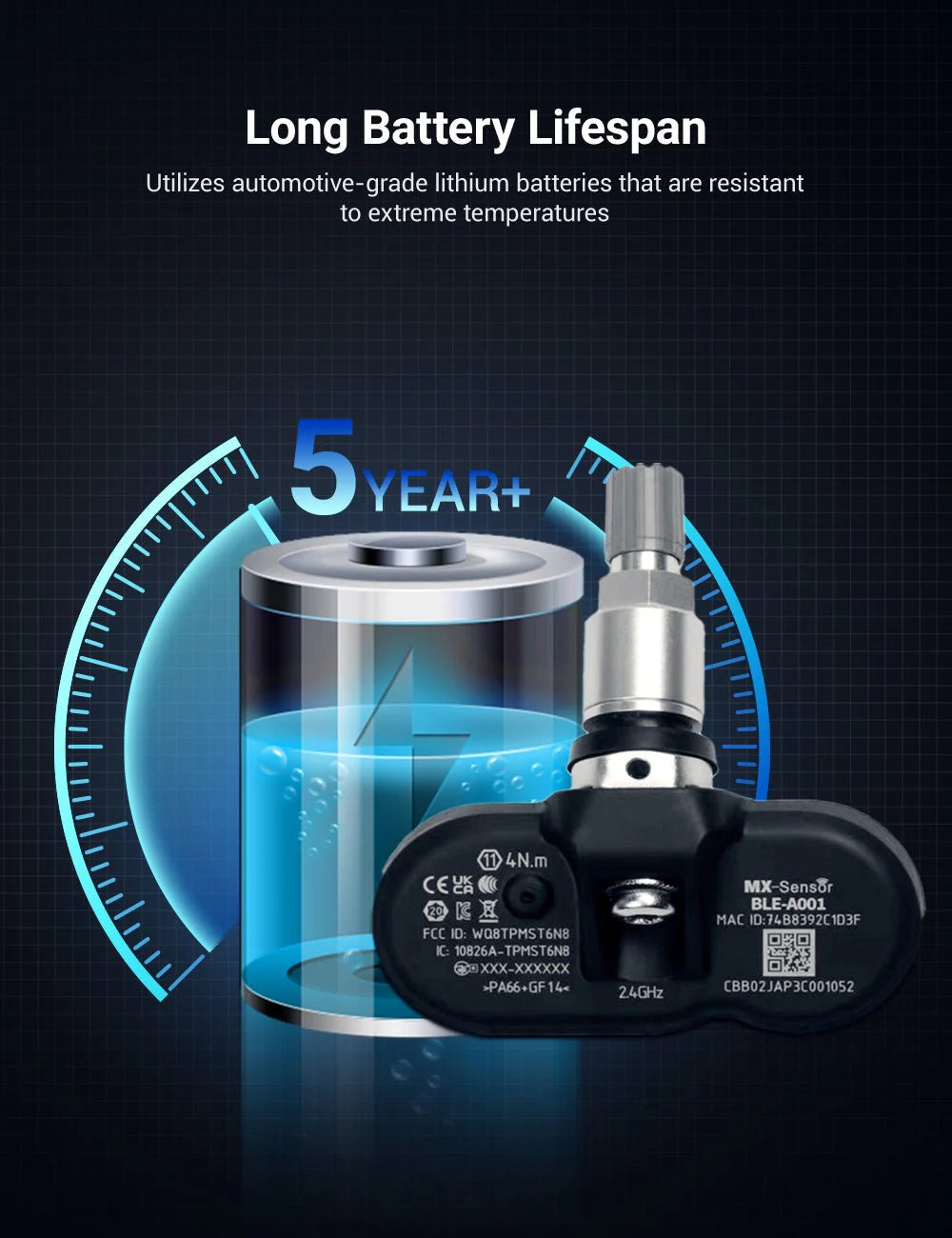

• Battery Life: ≥5 years
• Transmission Frequency: 2.4G (Bluetooth)
• Battery Capacity & Voltage: 320mAh / 3V

Compatibility Guide

Tesla vehicles use two different types of TPMS technology. This BLE Bluetooth sensor (1490701-01-B) is exclusively compatible with the following refreshed models:

• Model 3: Built October 2020 – Present
• Model Y: Built October 2020 – Present (All models)
• Model S / S Plaid: Refreshed models, June 2021 – Present
• Model X / X Plaid: Refreshed models, October 2021 – Present

(Note: If you drive a Model 3 built between 2017–Sept 2020, a Model S built between 2012–Jan 2021, or a Model X built between 2015–Jan 2021, your vehicle requires the older RF 433MHz TPMS [1034602-00-A & 1034602-00-C].)
